125 New to me 06 YZ125 lowered?

[PALMER84ONE]

1) You will be removing both outer right covers.
2) It looks like it will slide right out without having to cut it off. If so, try and put a pipe that slides over it or a cresent (adjustable wrench) on it and and tweek it back the other way a little.
3) If you end up with a cut off wheel (and I don't think you will) just be patient to cut slowly.

Good luck, and cool wife and kids, I'm lucky when I get a gift at all. But, I really don't need anything anyway.



[BigredGrizzly]

1) You will be removing both outer right covers.
2) It looks like it will slide right out without having to cut it off. If so, try and put a pipe that slides over it or a cresent (adjustable wrench) on it and and tweek it back the other way a little.
3) If you end up with a cut off wheel (and I don't think you will) just be patient to cut slowly.

Good luck, and cool wife and kids, I'm lucky when I get a gift at all. But, I really don't need anything anyway.

Great tips. Thanks bud.



[Mihylo33]

Happy Birthday @BigredGrizzly



[BigredGrizzly]

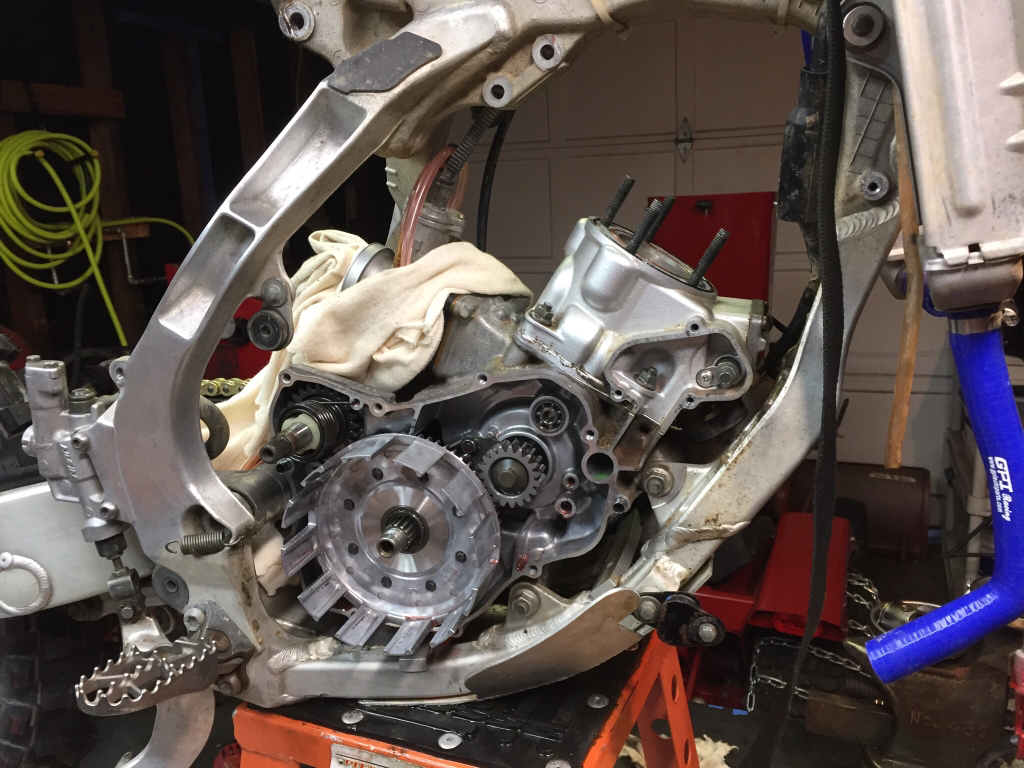

Hi Fellas... While I got the bike up here I'm thinking about doing the piston and ring kit. I've searched my manual for operating compression pressure and couldn't find anything. I read somewhere else that at 125 to 130 the piston should be replaced. What's a normal operating pressure?



[PALMER84ONE]

180-165 on the 125's I believe is the range, hi-low



[BigredGrizzly]

Ok. Cool thanks. I'm going to order a kit anyway. I know at some point I'll be replacing it. Also ordering the shift shaft. I need things to keep me busy until the suspension comes back. I've been taking apart just about every moving chassis piece an re-lubing it. Also repacked the silencer.



[PALMER84ONE]

Measure bore before you order piston.



[BigredGrizzly]

Measure bore before you order piston.

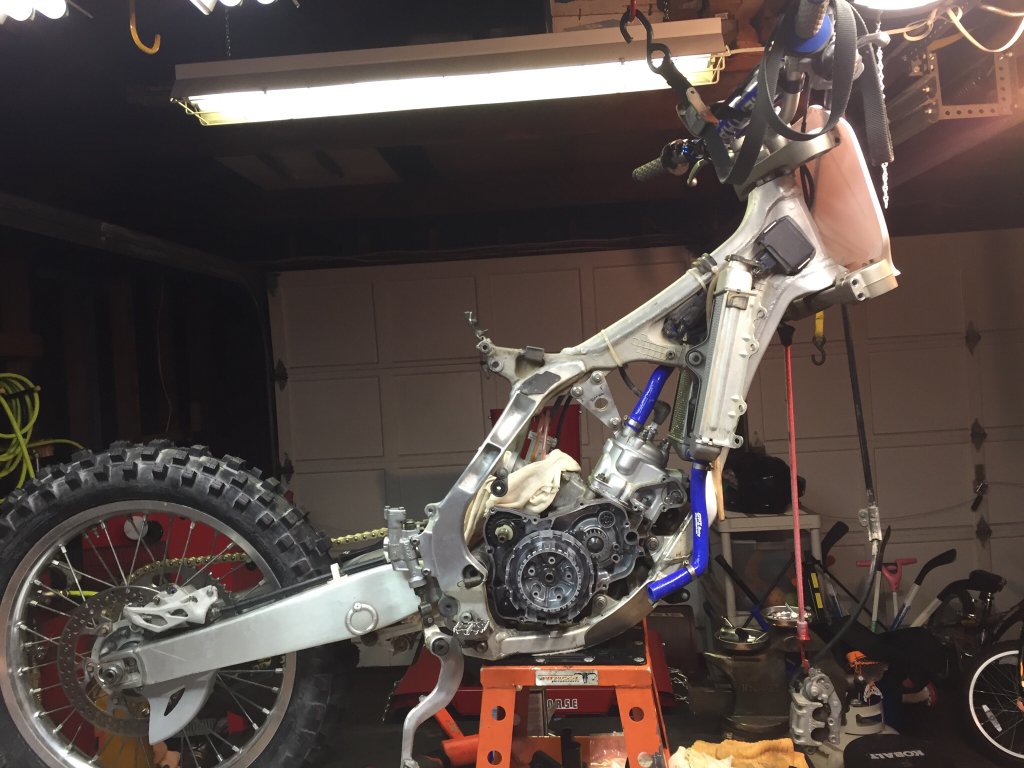

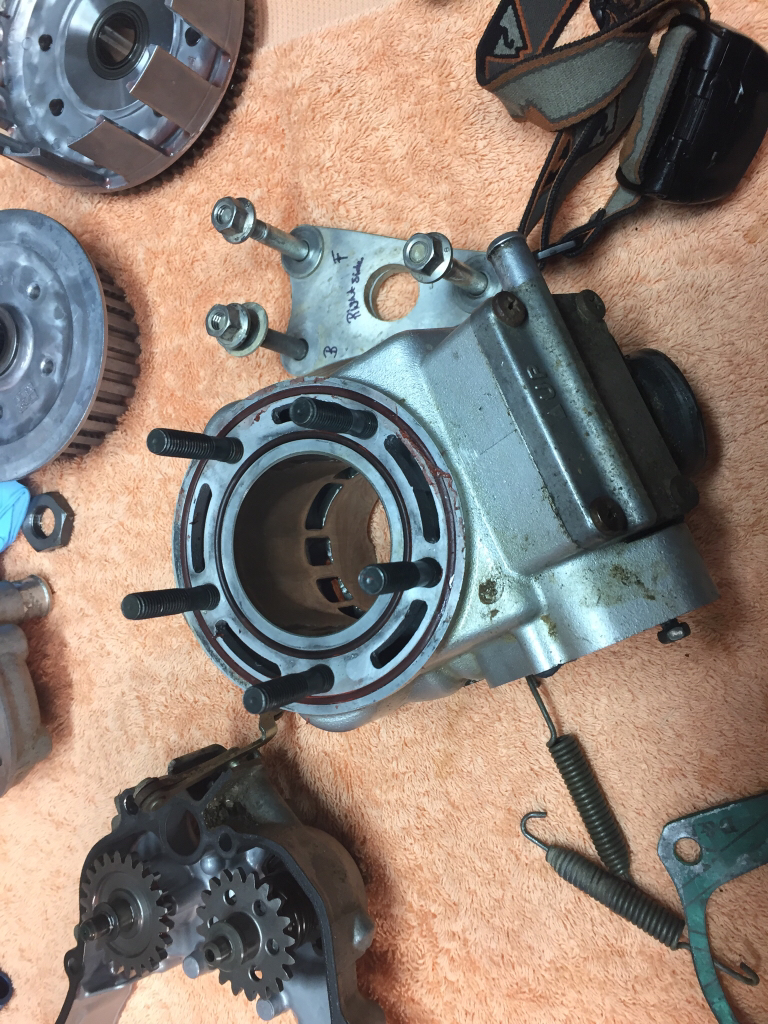

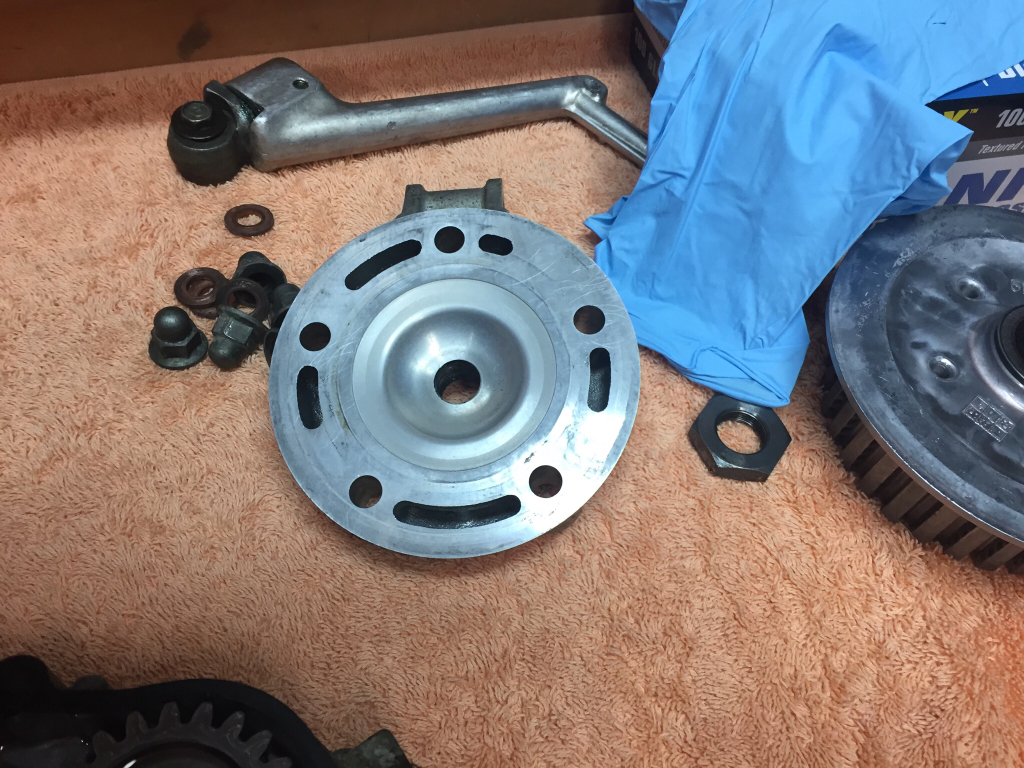

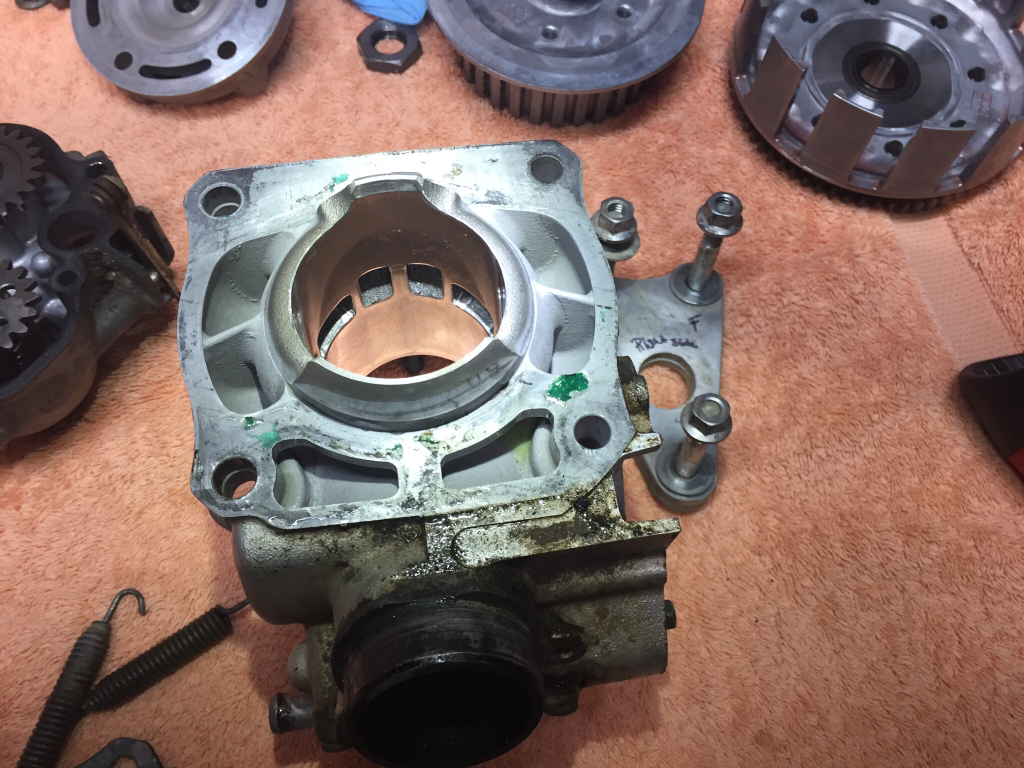

Ok. It's all apart and measured. Stock bore...[emoji1303]

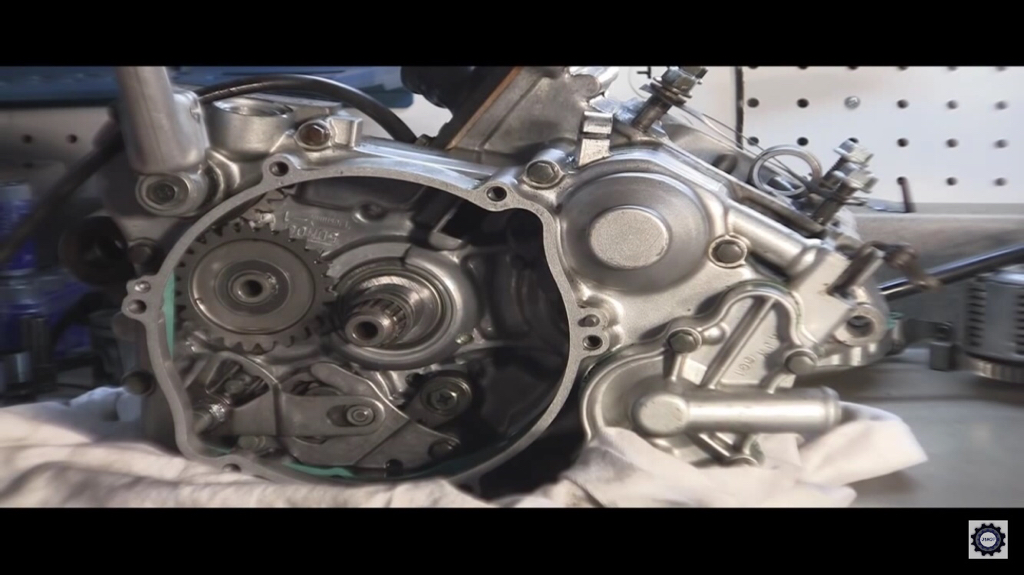

Here are some vids from tonight.
https://youtu.be/B7cLmTy-DZ0
https://youtu.be/mrSNnE-_QCc
https://youtu.be/gohNpcAol9E

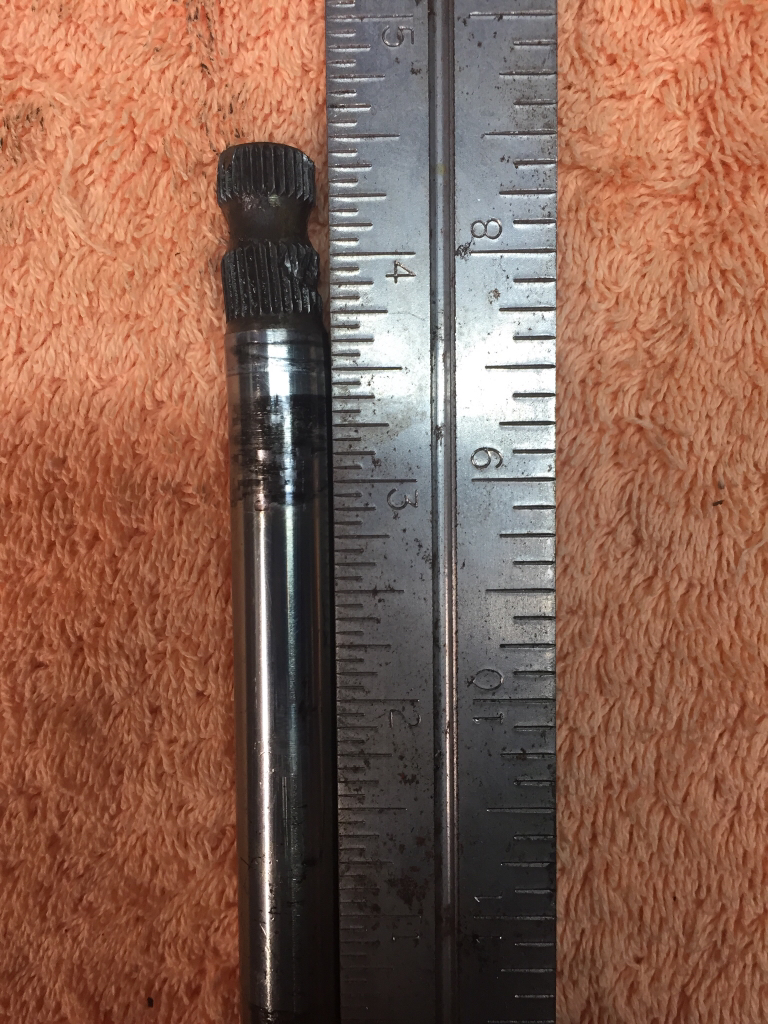

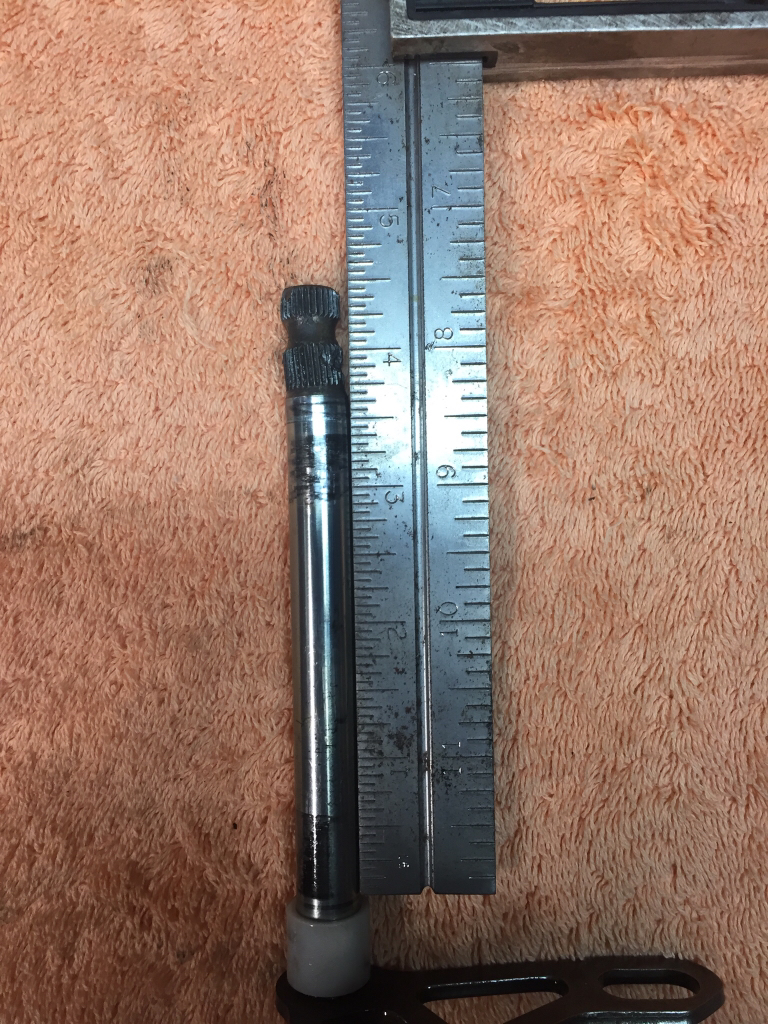

Here you can see the bend up against this straight edge. It was worse than this. This is after I straightened it a bit.

Parts

Ugh... Now I have to wait again[emoji30]... I'm impatient I guess.... [emoji482]



[PALMER84ONE]

How did you bend it back?



[BigredGrizzly]

How did you bend it back?

I used your suggestion. Instead of a pipe I used a 1/2" socket with a 1/2" extension and a pipe wrench. 2nd vid shows it. Thanks for the idea...



[ossagp]

You wonder how they shift when you see that.



[BigredGrizzly]

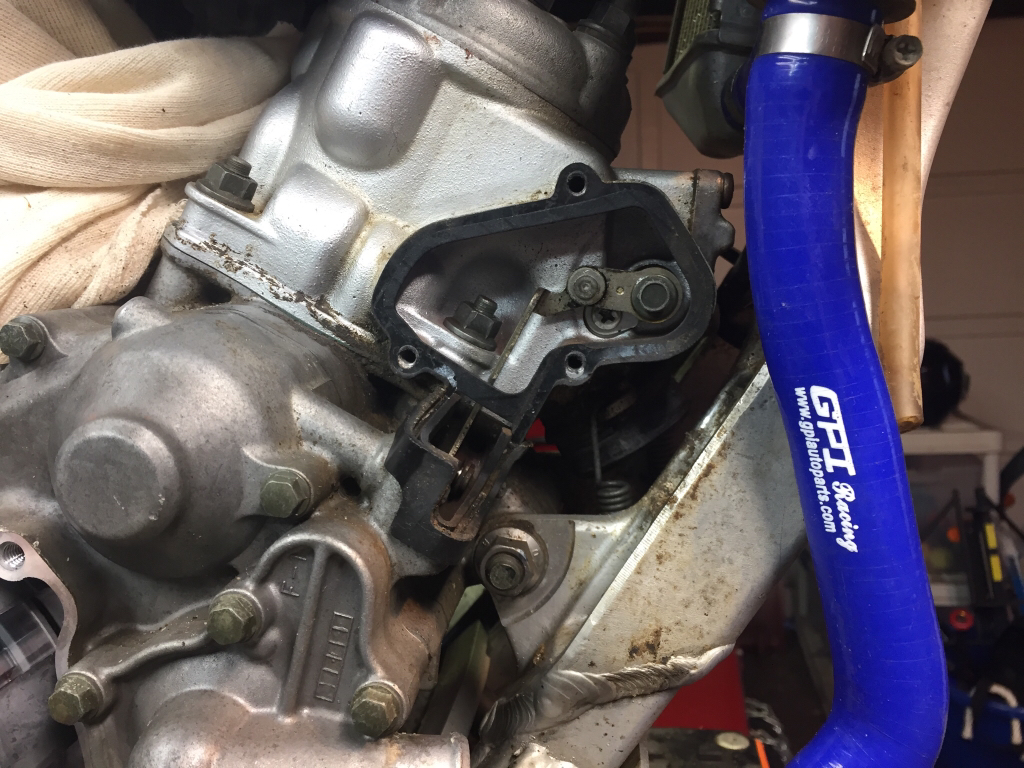

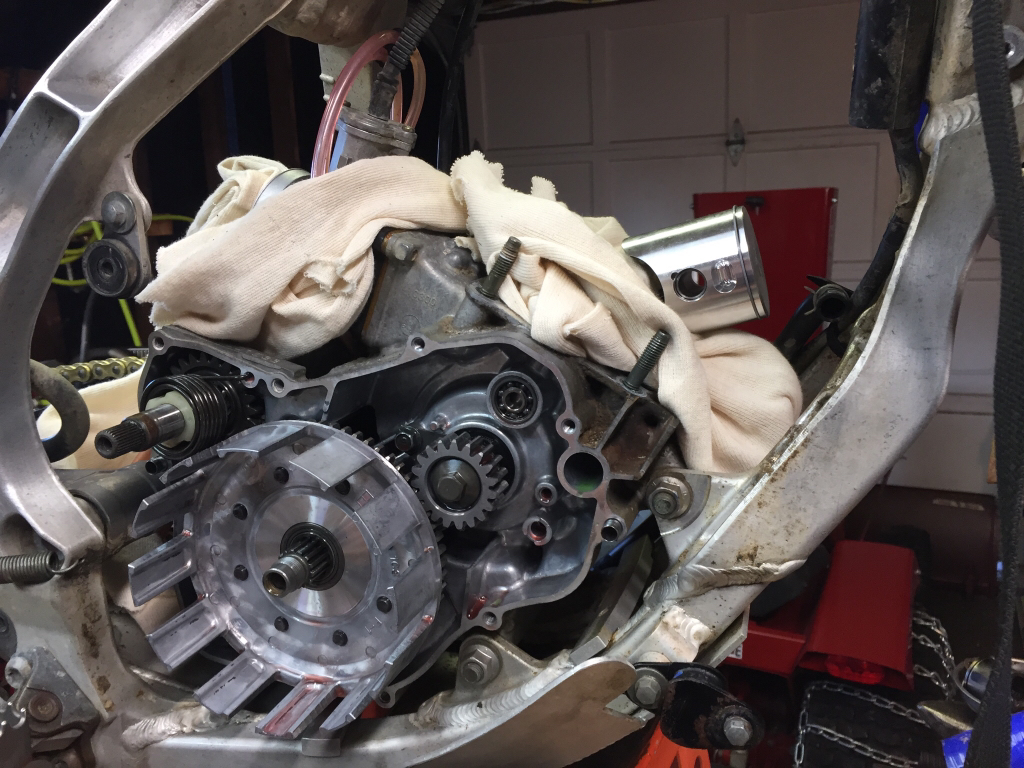

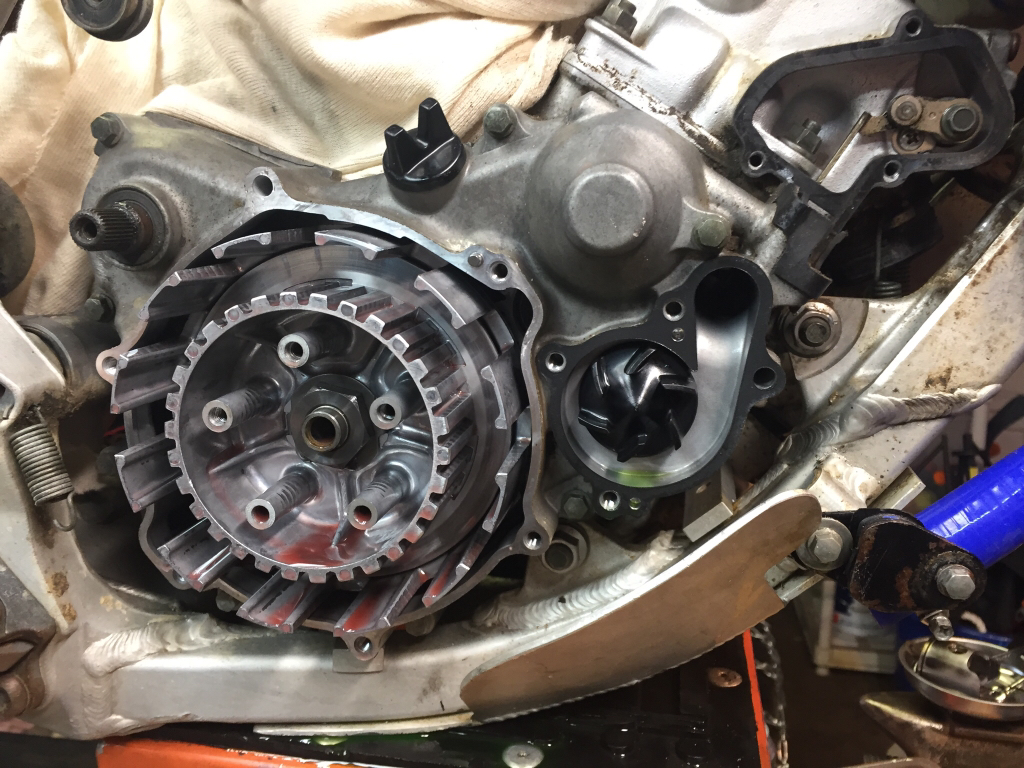

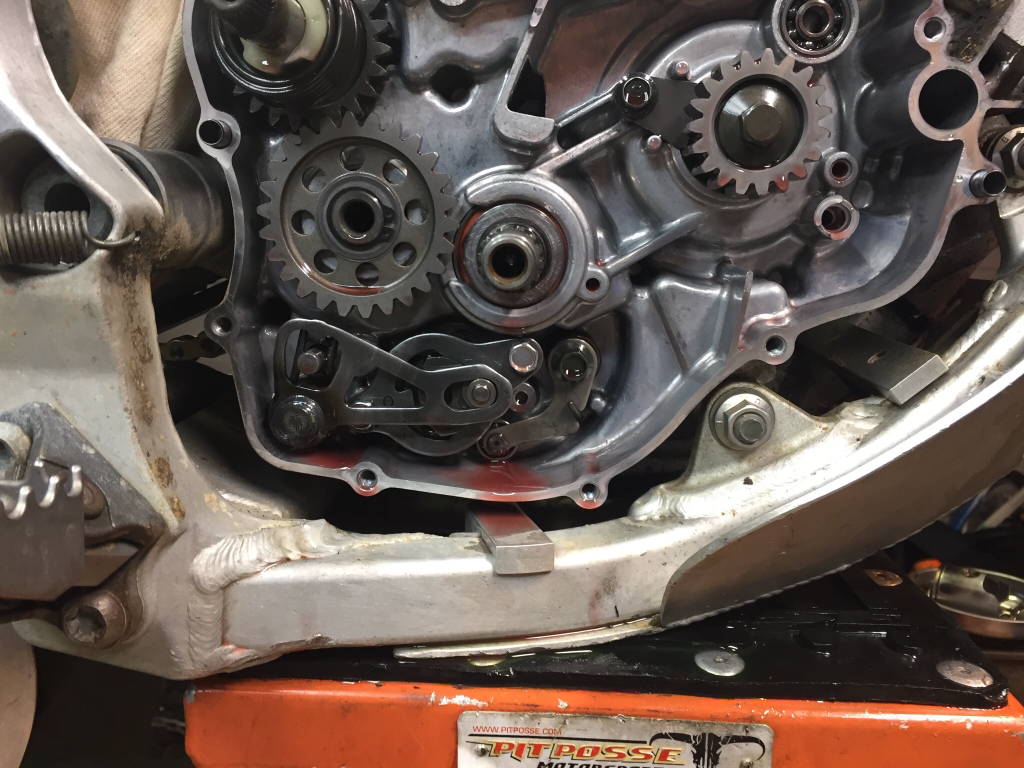

Tonight I put the new shift shaft and seal in. Also installed the new piston and buttoned up the cylinder and head. I have the fiber clutch plates soaking and I'll load those up tomorrow. Hoping to have this engine closed up tomorrow night. I talked to Jay at GRR today and he said I'll most likely be able to get the suspension Friday night! Might have this puppy completely back together over the weekend.



[PALMER84ONE]

She's a lookin good.



[BigredGrizzly]

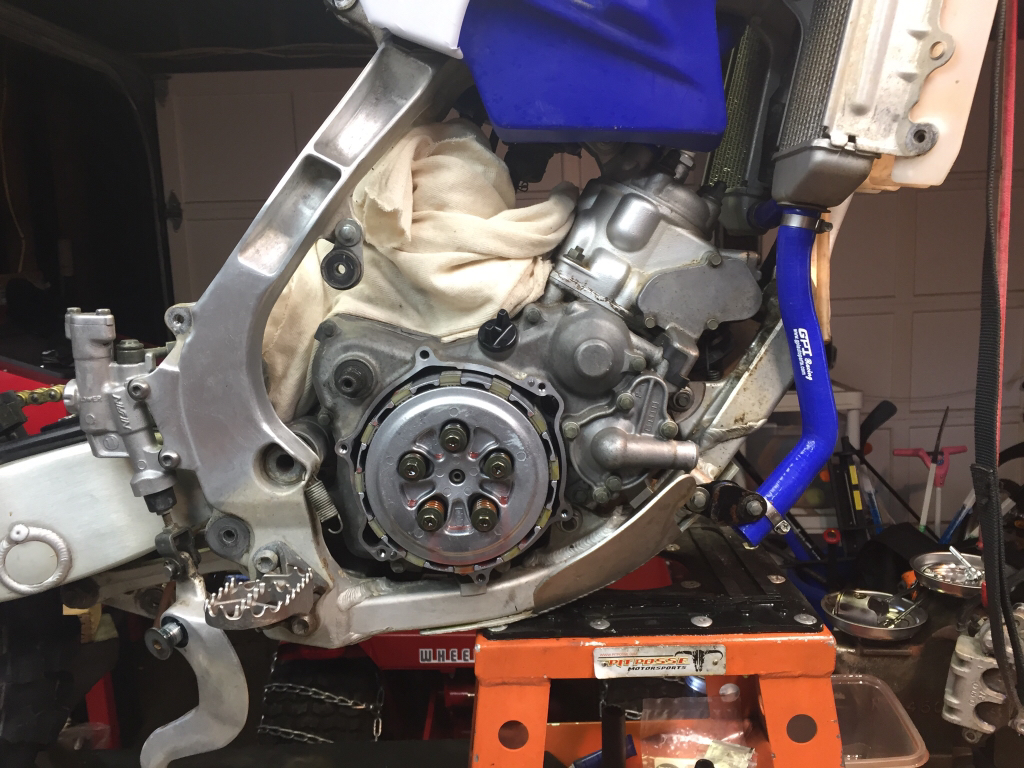

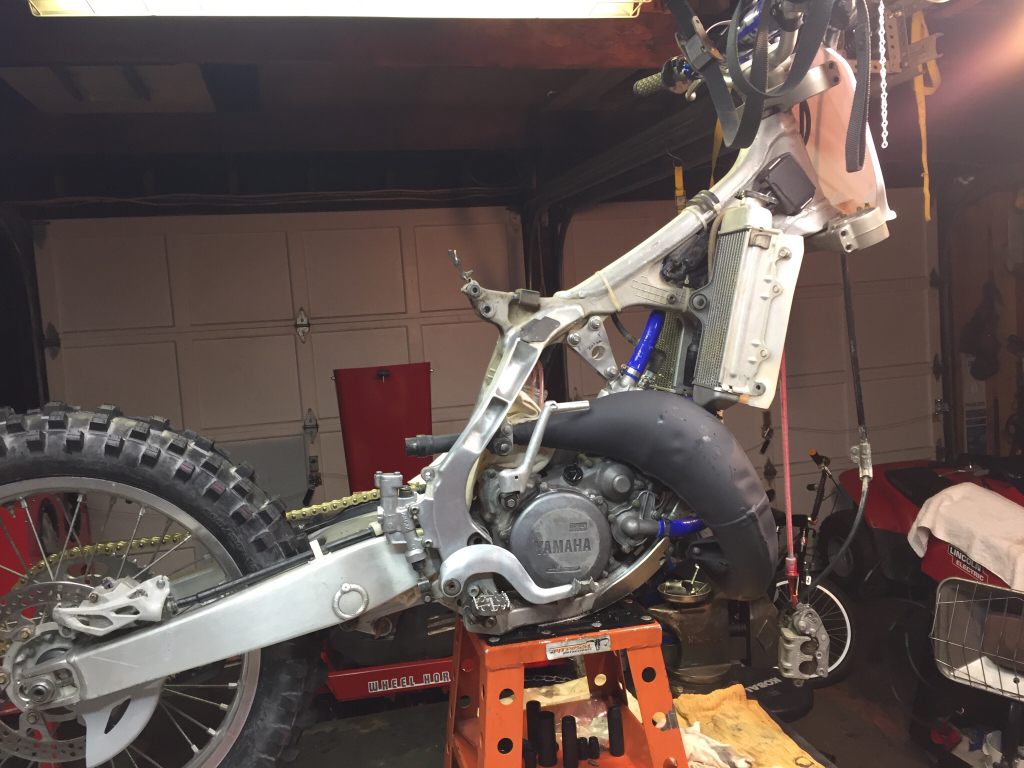

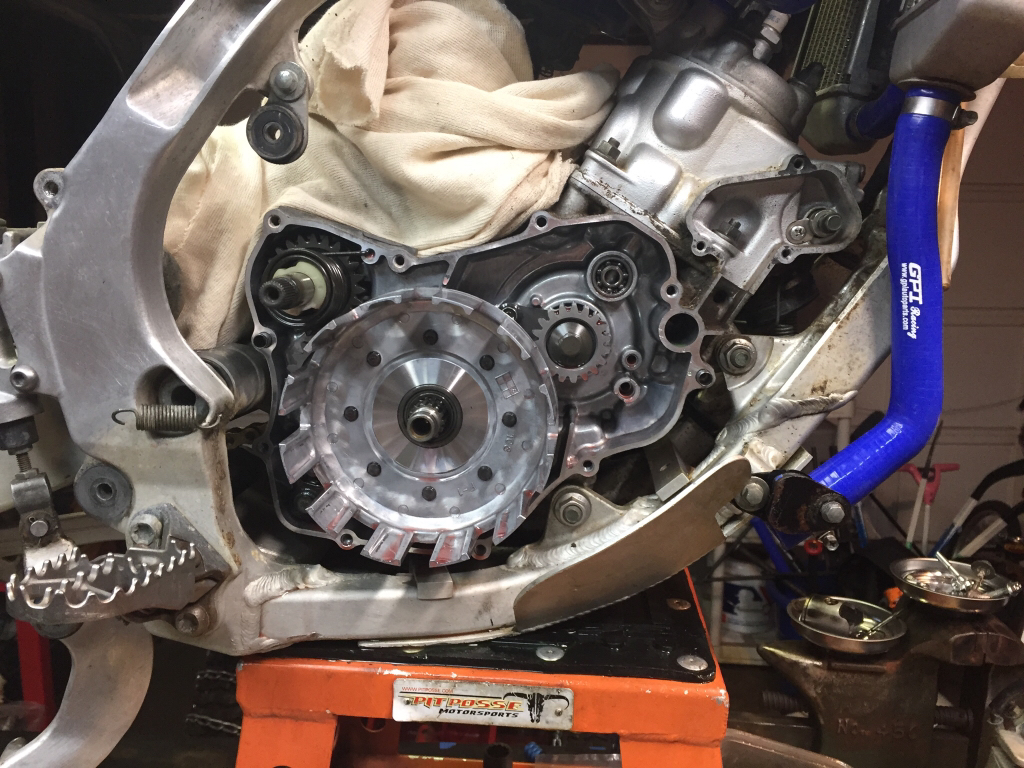

Got the clutch installed, buttoned up the engine, filled the oil, and mounted the pipe.



[Mihylo33]

Palmer loves a good pipe mounting. Just sayin.
